SmartHandle AX Advanced ordering help

• Cover only available in wide version for the electronics side

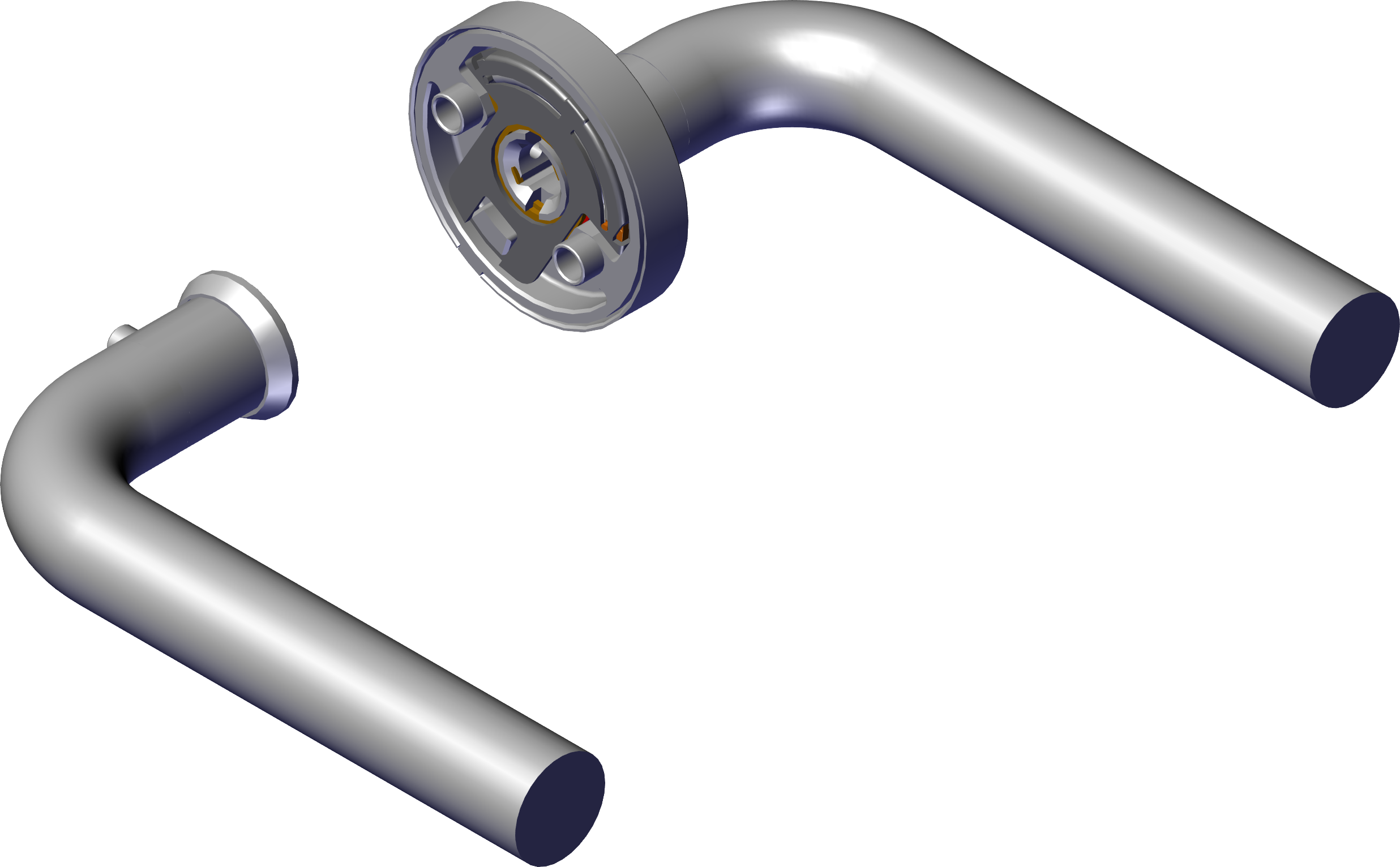

• Round rosette set for the inside
• A 9 mm square spindle must always be used for escape and rescue doors
• .FH is only available with 8 mm or 9 mm square spindles and as a complete fitting
• FSB handles on the inside must be used with an FSB round rosette set

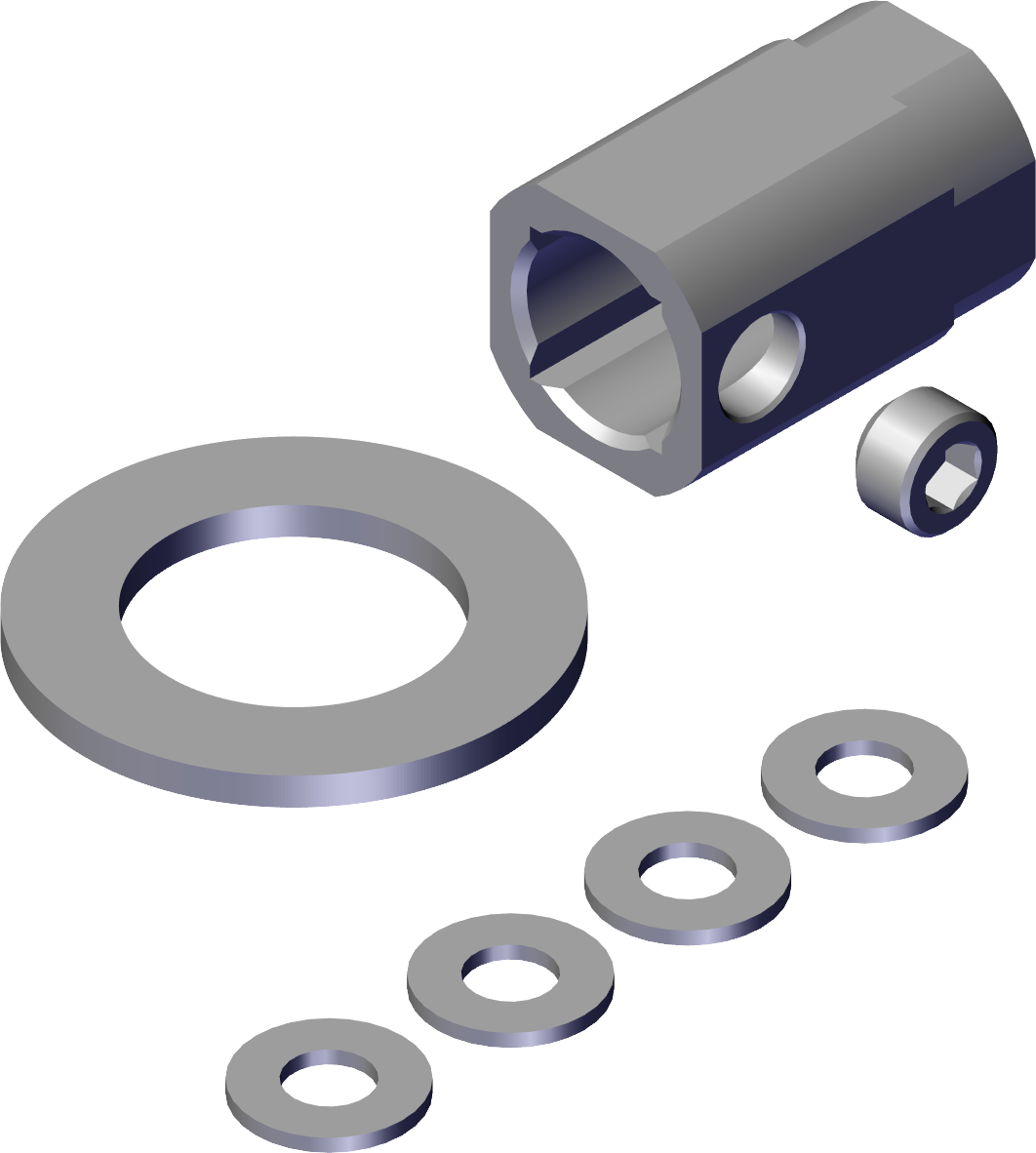

• For the outside, order item S3.FSB.ADAPTER to install an FSB handle

• Mounting on distance holes 38 mm horizontally around the lock nut and the PZ opening

• For doors with protection class up to RC4
• Cover only available in narrow version on both sides
• Cannot be ordered without inner side
• The .FH option cannot be ordered
• Screws are fastened through the door
• A 9 mm square spindle must always be used for escape and rescue routes
• This variant must always be used with an equivalent locking cylinder in order to meet the burglary protection class
• Locks with split lock nuts must not be used

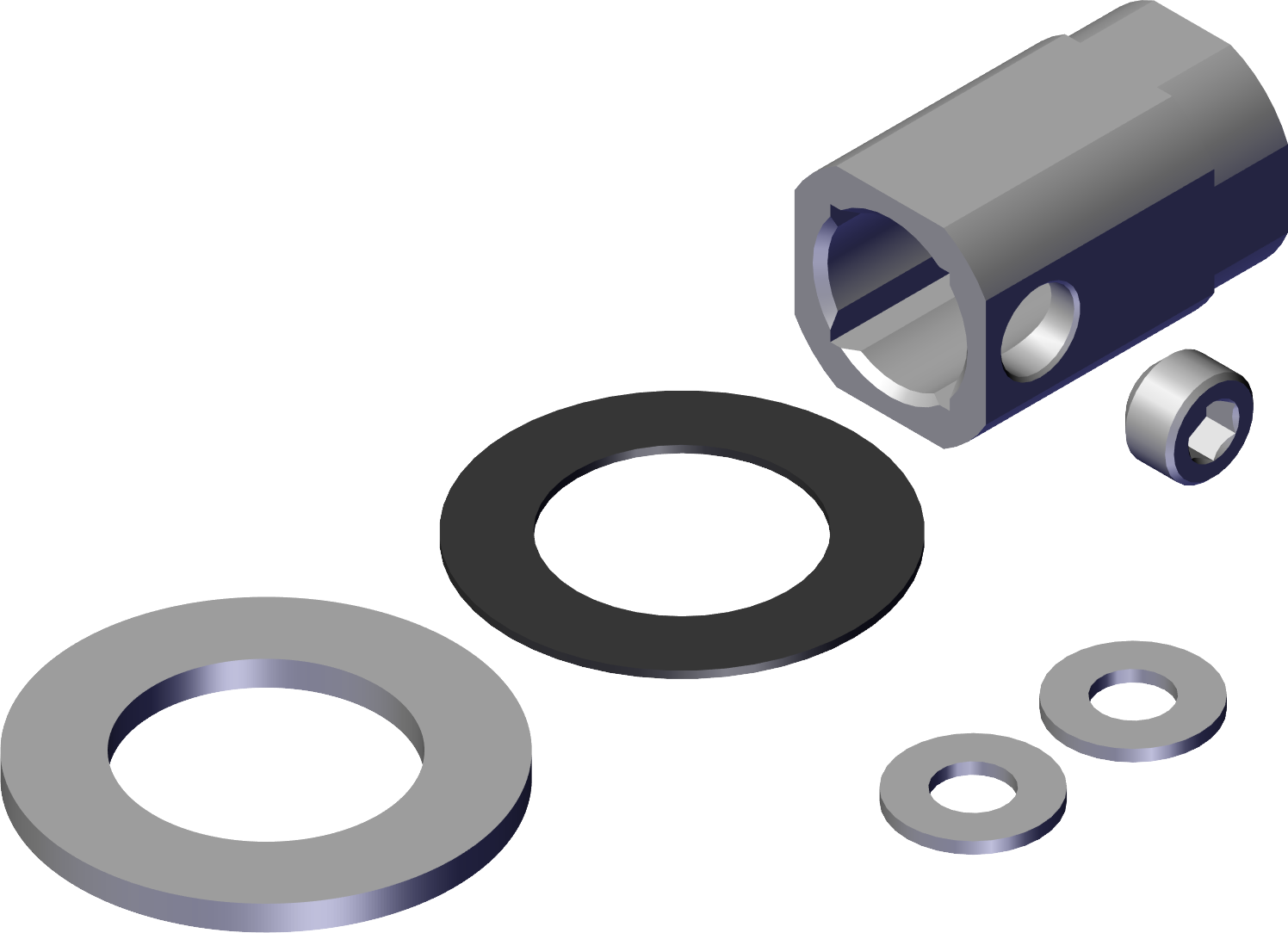

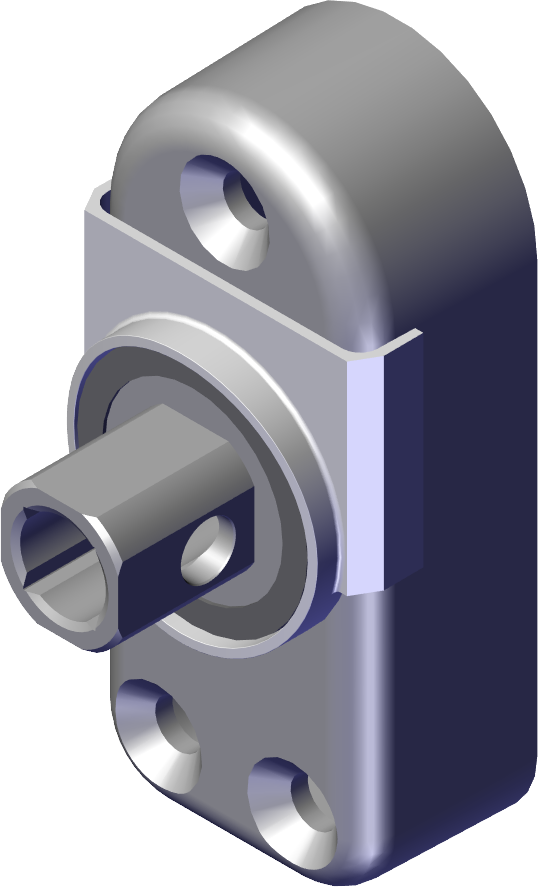

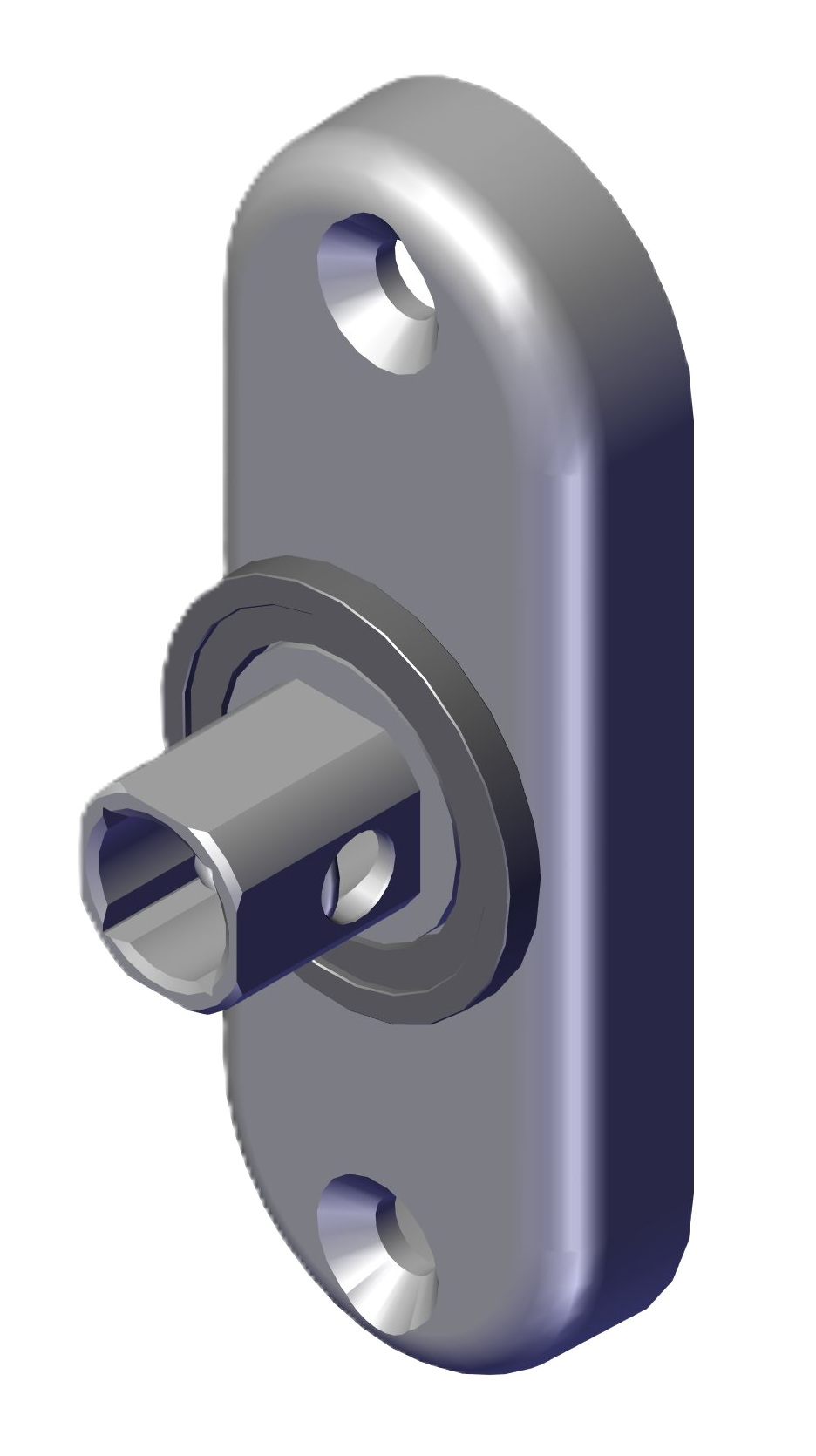

• FSB handles on the inside must be mounted with the adapter S3.ADAPTER.FSB.2.8 (8 mm) or S3.ADAPTER.FSB.2.9 (9 mm)
• Cover on the inside is mandatory
• For the outside, order item S3.FSB.ADAPTER to mount an FSB handle

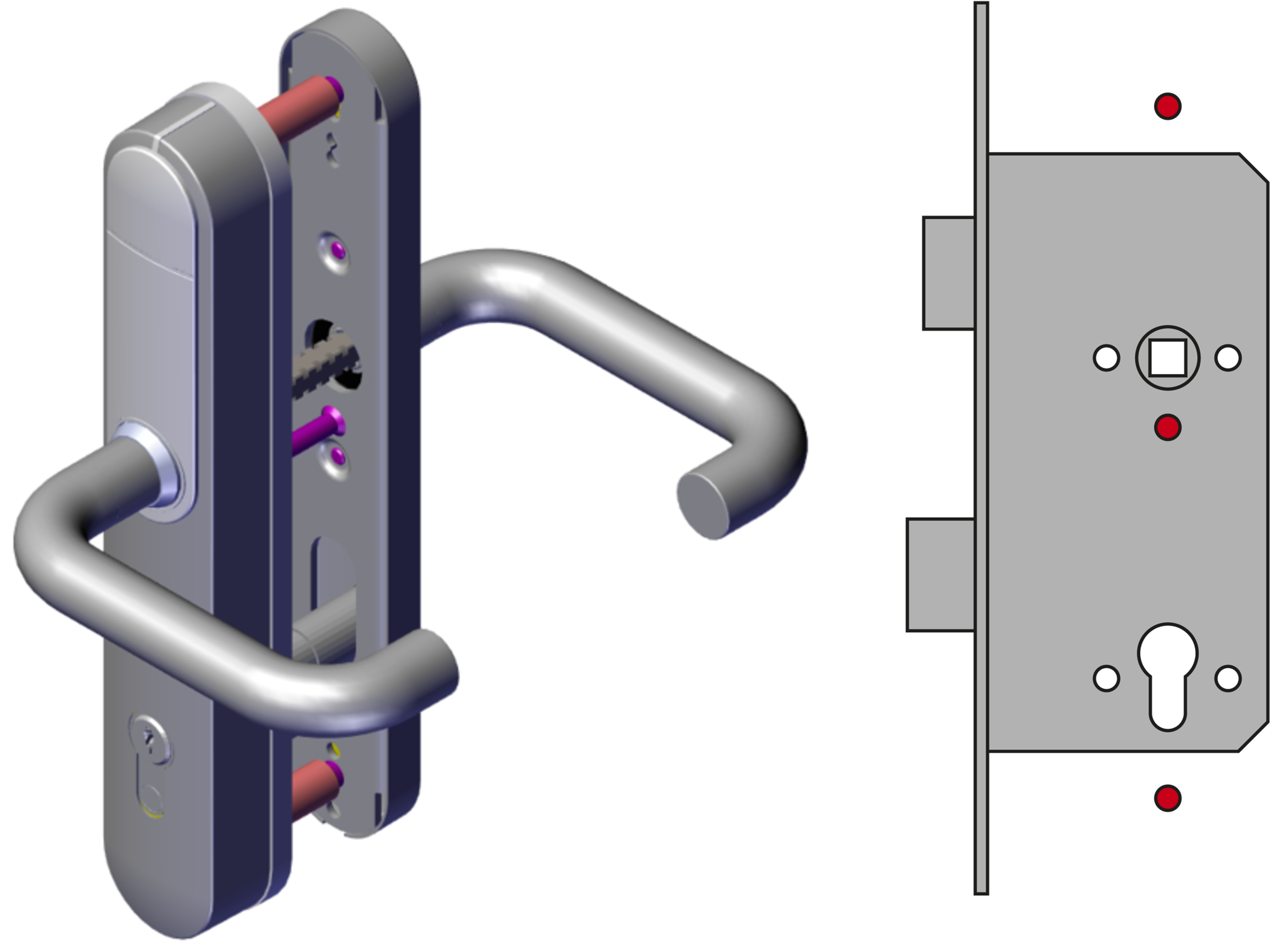

• Screw fixing: center (21.5 mm below lock nut), bottom (138 mm below lock nut), and top (88 mm above lock nut)
• Center screw fixed with M6 screw, top and bottom screws fixed with M8 screws

• Cover available in narrow and wide versions on both sides

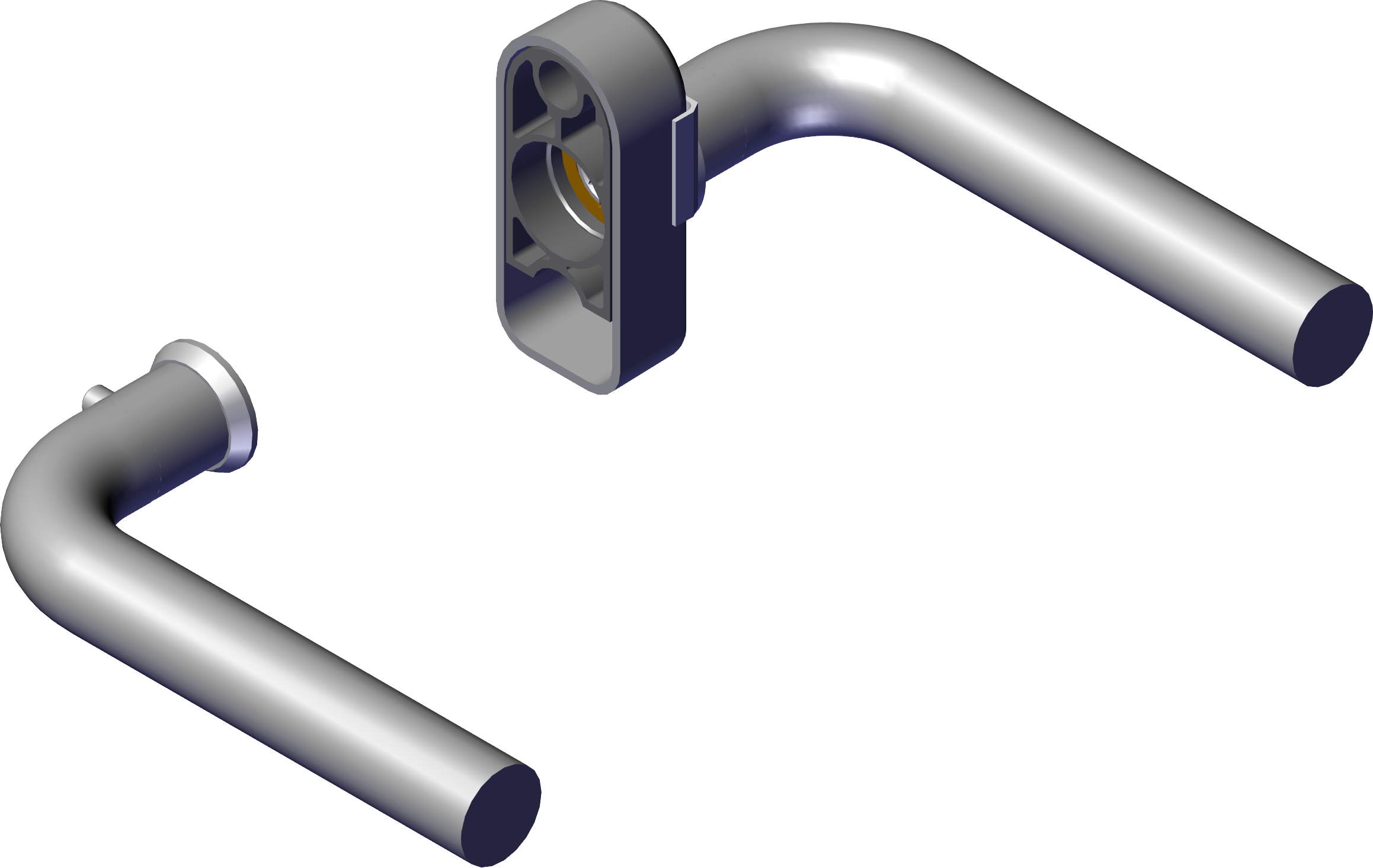

• Cannot be ordered without inner side, as otherwise no handle holder will be supplied
• A 9 mm square spindle must always be used for escape and rescue doors
• .FH is only available with 8 mm or 9 mm square spindle and as a complete fitting
• FSB handles on the inside must be mounted with the adapter S3.ADAPTER.FSB.2.8 (8 mm) or S3.ADAPTER.FSB.2.9 (9 mm)
• Cover on the inside is mandatory
• For the outside, order item S3.FSB.ADAPTER to mount an FSB handle

• Screw fixing for short plate holes: centered (21.5 mm below the lock nut) and below the PZ cut-out (112 mm below the lock nut)

• Screw fixing for long plate holes: center (21.5 mm below lock nut) and top (84 mm above lock nut)

• Narrow and wide covers available on both sides; please note that there is a visible plate around the cover on the outside
• Cannot be ordered without the inside, as otherwise no handle mount will be supplied
• A 9 mm square spindle must always be used for escape and rescue doors
• FH is only available with an 8 mm or 9 mm square spindle and as a complete fitting
• For the outside, order item S3.FSB.ADAPTER to install an FSB handle.
• FSB adapter for the new, flatter inside expected to be available from December 2025.

• Screw fixing for FR195: top (65 mm above lock nut) and bottom (130.5 mm below lock nut)
• Screw fixing for SH 3062 conventional installation: top (71 mm above lock nut) and bottom (130.5 mm below lock nut)
• A third sleeve is supplied for an optional screw in the middle.

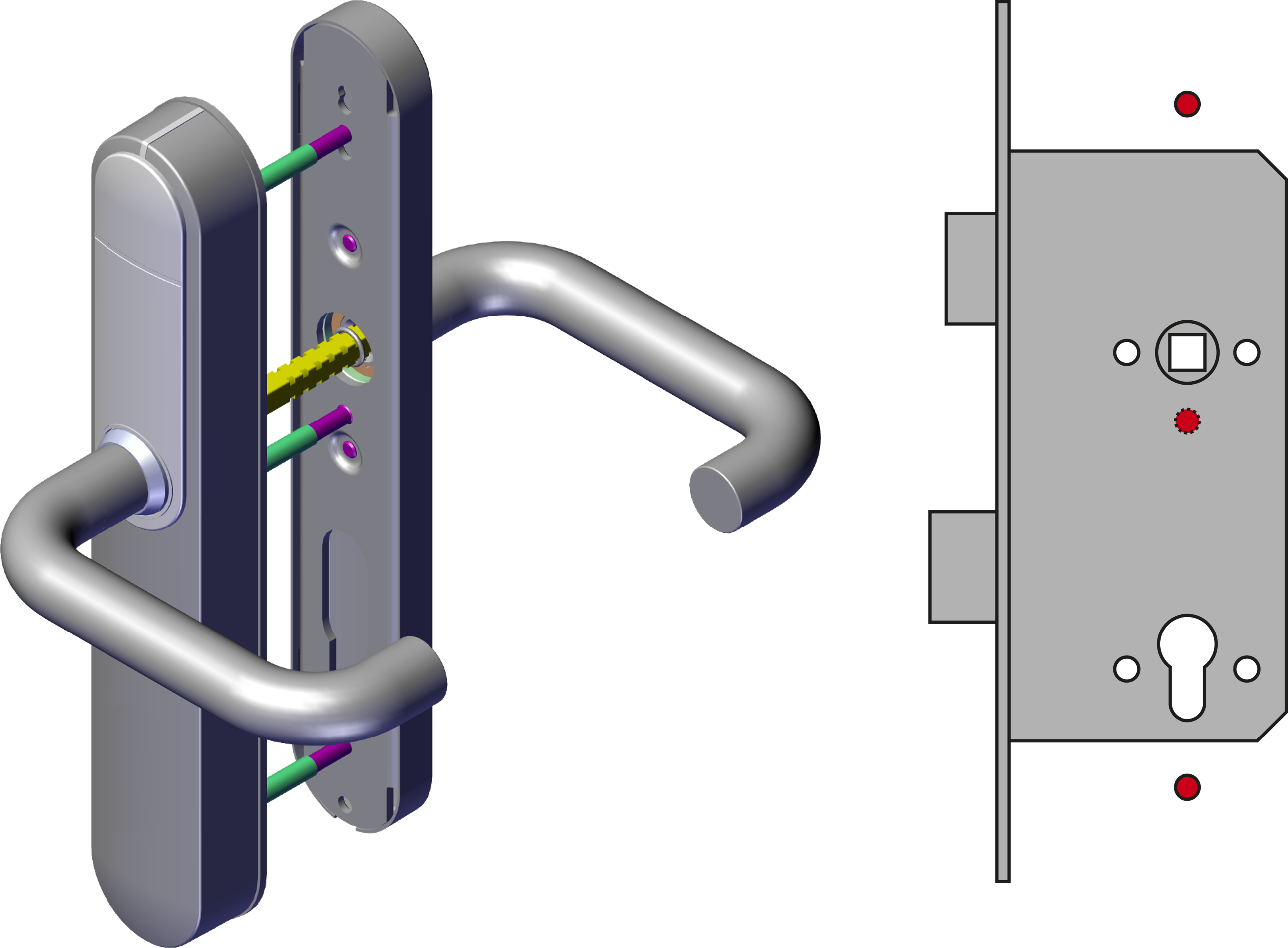

• From mid-October 2025 with the new, flatter inner side
• Changes in assembly with new inner plate and new inner cover
• New FSB adapter for flatter inner cover expected to be available from December 2025

• Only available with narrow cover
• The mounting plate on the outside is larger than the cover and therefore clearly visible
• An adhesive rosette is supplied for the inside with MO, which can be optimally positioned around the lock cylinder
• Cannot be ordered without the inside, as otherwise no handle holder will be supplied
• A 9 mm square spindle must always be used for escape and rescue doors
• .FH is only available with 8 mm or 9 mm square spindle and as a complete fitting

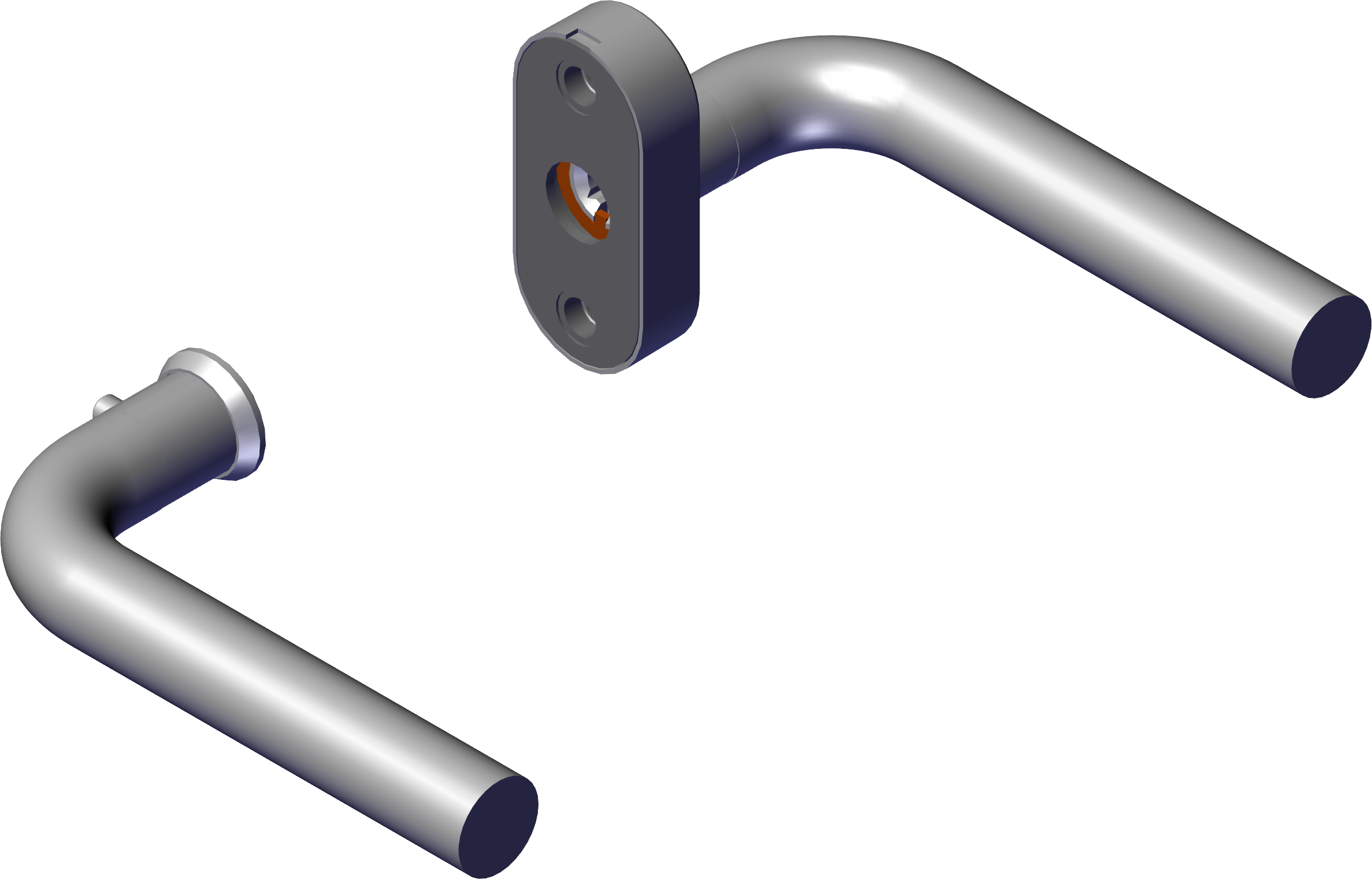

• FSB handles on the inside must be used in conjunction with FSB oval rosettes
• For the outside, order item S3.FSB.ADAPTER to install an FSB handle

• Screw fixing: top (105 mm above lock nut) and bottom (145 mm below lock nut)

• Narrow and wide covers available for the electronics side
• Round rosette set for the inside
• Available in .DS / double-sided reading
• To order, place your order for the outside as usual (without inside and without inside handle)
• Additionally, order the same fitting for the inside with the addition .DS
• There are no blind cylinders for Scandinavian Oval
• A 9 mm square spindle must always be used for escape and rescue doors
• FSB handles on the inside must be used with an FSB round rosette set
• For the outside, order item S3.FSB.ADAPTER to install an FSB handle

Door thickness ranges for *DS:

• S: 32 - 59 mm
• M: 57 - 79 mm
• L: 77 - 99 mm
• X: 97 - 192 mm

• Narrow and wide covers available for the electronics side
• Panic bar for the inside is sourced from a third-party supplier
• Mounting plate is visible all around
• Two panic bar options:
• With inner plate (*PS*)
• Without inner plate (*PO)
• Approval for individual panic bar models from BKS, EcoSchulte, and CISA
• Models must be checked on a case-by-case basis
  (Note approval lists from panic bar supplier; door thickness X not possible for CISA)
• A 9 mm square spindle must always be used for escape and rescue routes
• FH only applies with 8 mm or 9 mm square spindle / FH approval also without internal handle here

Adaptation to panic bars with narrow inner plate *PS*

• PS72: Holes 21.5 mm and 112 mm below the lock nut
  (standard drilling pattern for short plate fastenings)
• PS92: Holes 21.5 mm and 135 mm below the lock nut
• No inner side of SimonsVoss

Adaptation to panic bars with narrow plate for installation with oval rosette *PO*

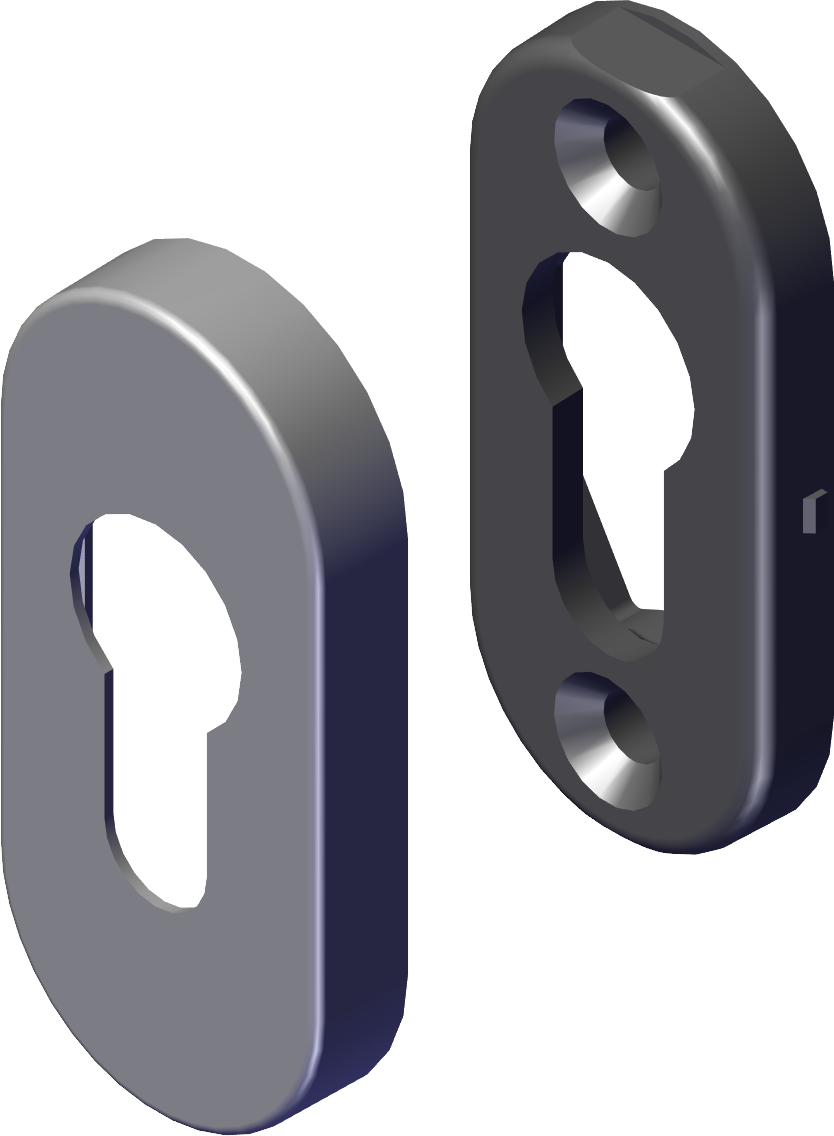

• Drill holes: 21.5 mm below the lock nut and 50 mm spacing holes vertically around the PZ opening for oval rosettes
  (oval rosette is not screwed through, but screwed onto the door)

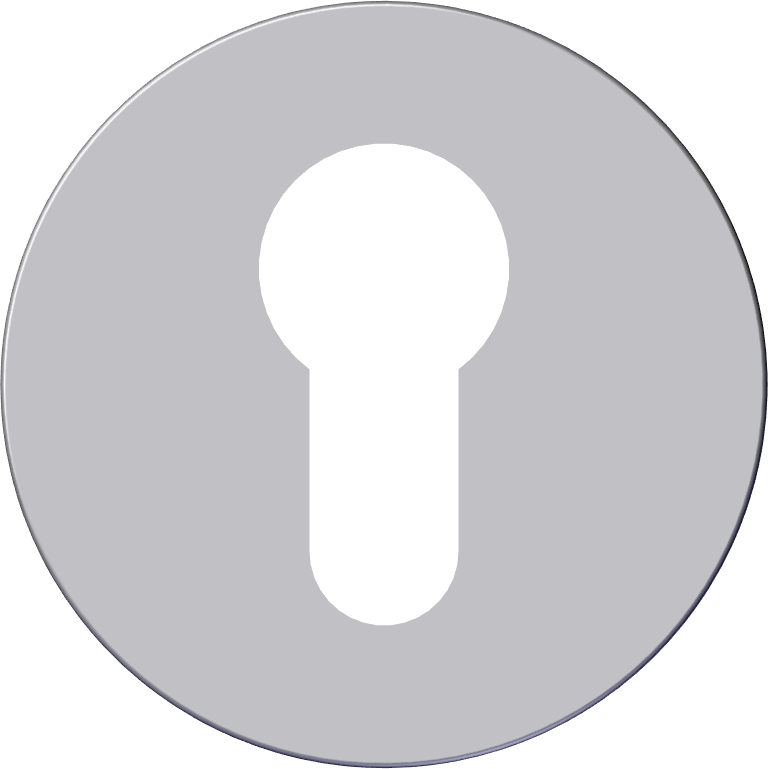

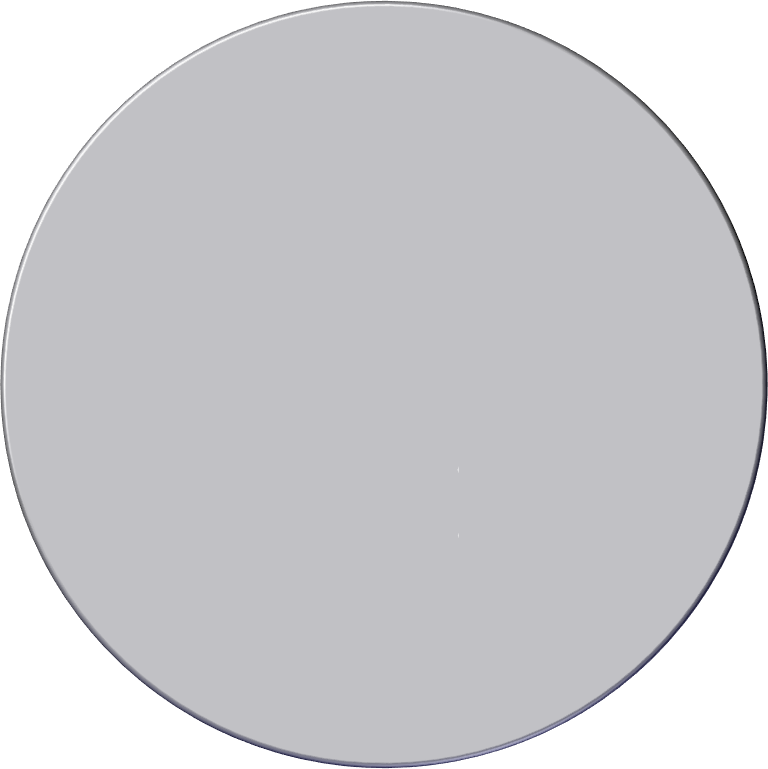

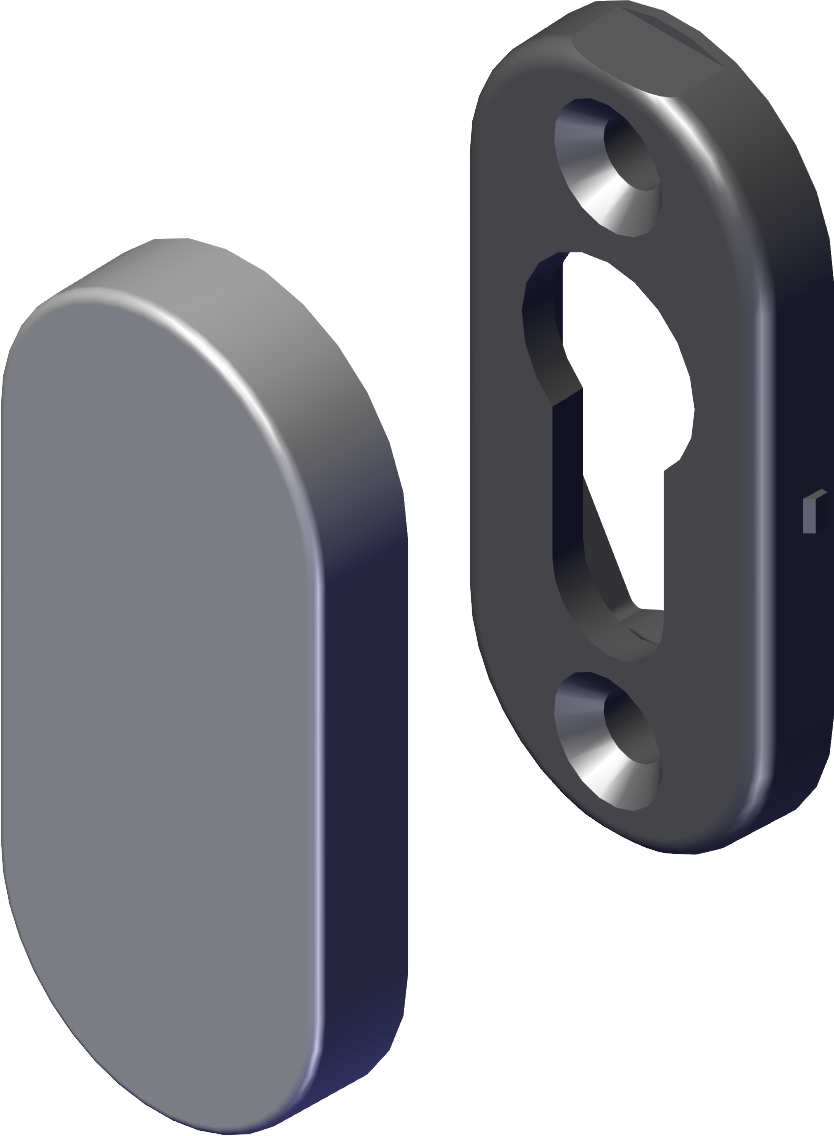

• For the inside, order rosette with or without lock cylinder opening

Adaptation to panic bars with wide inner plate *PS*

• PS72: Holes 21.5 mm and 112 mm below the lock nut
  (standard hole pattern for short plate fastenings)
• PS92: Holes 21.5 mm and 135 mm below the lock nut
• No inner side of SimonsVoss

Adaptation to panic bars with wide shield for installation with round rosette *PO*

• Drill holes: 21.5 mm below lock nut and 38 mm spacer holes horizontally around PZ opening for round rosettes
• For the inside, order rosette with or without lock cylinder opening
