Digital Cylinder Locks
Future-proof your security with superior quality, German-engineered digital locking cylinders.
The Digital Cylinder AX is the most powerful locking cylinder in the SimonsVoss range. An ergonomic yet compact thumb-turn with optical and audible signals makes operation easier. We have also given priority to high-quality materials. This ensures that the AX Cylinder is robust and durable with very low operating costs at all times.
The AX Digital Cylinder represents state-of-the-art technology today. Yet it also contains the future. This is because it is equipped and ready for technological advances and has the technical potential for future innovations.
Advantages of our Digital Cylinder AX
- Can be integrated into an existing system (backward-compatible with existing SimonsVoss products)
- Extremely fast, straightforward installation. No wiring or drilling. New locking mechanism requires no special tools for installation
- Flexible thanks to modular design (individually adjustable cylinder lengths) – saves time and money
- Bluetooth Low Energy (BLE)-Technology
- Digital cylinder offers high ease of use thanks to visual and audible feedback
- Optimal handling thanks to ergonomic thumb-turns
- Very long battery life: up to 10 years
- Encapsulated actuator electronics with integrated Secure Element, protected within the cylinder core
- Core and profile drill protection integrated as standard to protect against external tampering
- Protected against weather conditions and dust and water ingress to IP67
- Two-stage low-battery warning system (visual/audible) on the digital cylinder
- Extremely durable: Mechanical durability independently verified by an external testing institute to 1.5 million operating cycles (DIN EN 15684, Class 6 (highest): 100,000 operating cycles)

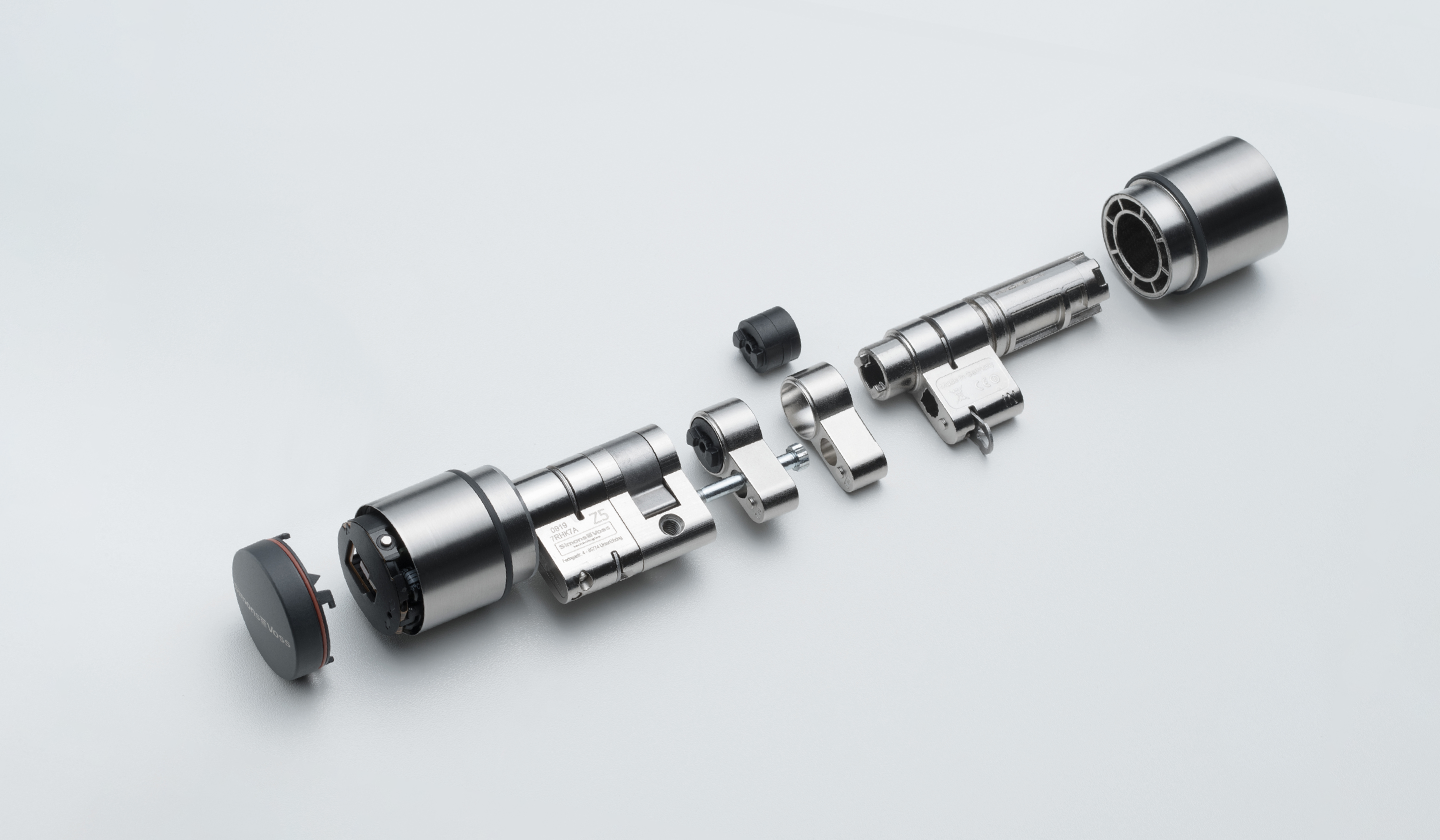

Flexible thanks to modular design
Digital Cylinder variants at a glance:
▶ Double thumb-turn cylinder AX Comfort
The inner side of the digital cylinder is permanently engaged for use. This means that doors can be opened from this side without a transponder or smart card. Often used in offices, apartment entrances and building entrances.
▶ Double thumb-turn cylinder AX Freely rotating
The digital cylinder, which is freely rotating on both sides, is suitable for connecting doors or gates, for example. A locking medium is required to unlock and lock on both sides.
▶ Double thumb-turn cylinder AX Anti-panic
Used in anti-panic locks, e.g. on escape and rescue routes. Available in “Freely rotating” and “Comfort” variants and as a half cylinder.
▶ Half cylinder AX
Half cylinders are suitable for doors that can only be locked or accessed from one side, and can also be used in key switches and cabinets.
▶ Lever cylinder AX
Lever cylinders are suitable for applications such as locker and cabinet doors. They are secured by the integrated lever.
▶ Glass door cylinder AX
The Digital Cylinder AX for glass door fittings is a “short cylinder” with dimensions of 25-15 mm – designed for installation in glass doors. The cylinder’s modular design makes it perfectly suited to this application.
▶ Seawater-resistant cylinder AX
Thanks to the use of premium-grade materials such as V4A steel for its external surfaces, the WP version of this cylinder withstands demanding environments exposed to saltwater or sea air, for example in port infrastructure or on yachts.
▶ Cylinder AX with shortened thumb turn
The Cylinder AX with shortened thumb turn is ideal for installation in confined spaces, such as sliding doors or doors with recessed handles.
▶ VdS/SKG
This variant was developed for doors requiring a particularly high level of burglary protection. It meets the criteria for VdS approval (Class BZ) and SKG three-star certification.
▶ Self-locking half cylinder
This variant is a self-locking half cylinder for swing handles, used, for example, to secure server cabinets.
▶ Swiss Round & Scandinavian Oval
- The Swiss Round variant is specially manufactured for use in Switzerland.
- The Scandinavian Oval variant is suitable for use in Sweden, Norway, Denmark, Finland and Iceland.
